My Quads

Posted on November 11, 2015 • 2 min read • 337 words

Here’s a list of my current quads, this will hopefully remain up to date…

Last updated: 30/05/2016.

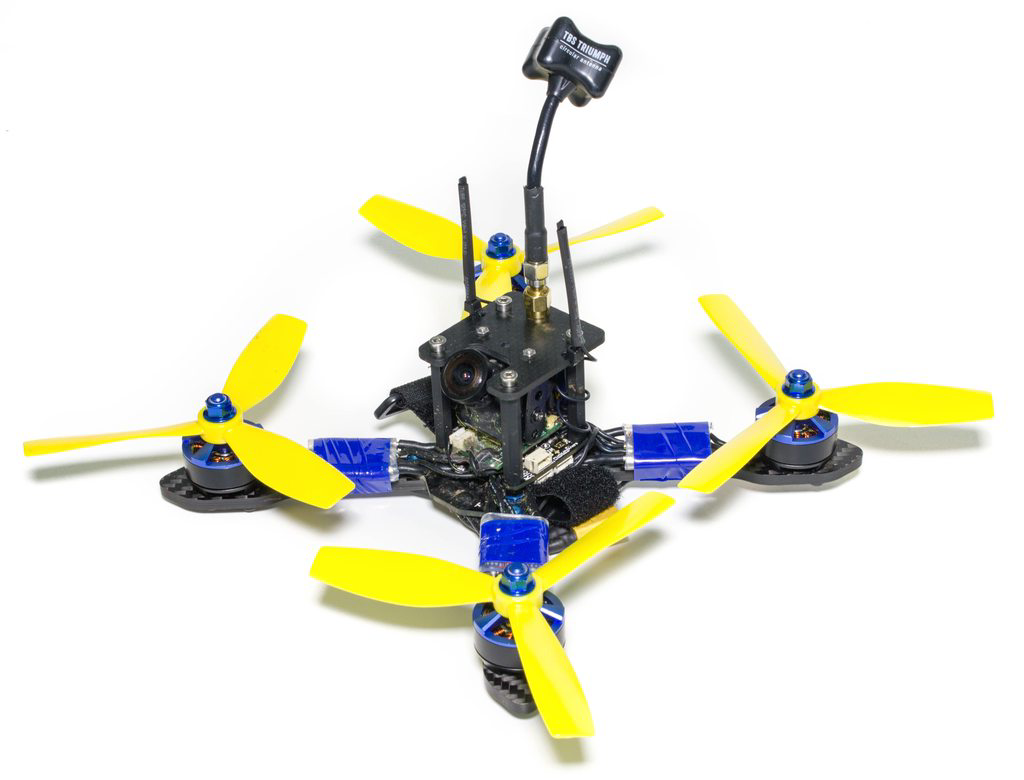

Shrike #1

Specs:

• X-Labs.us Shrike
• X4R-SB receiver
• KISS 24A-RE ESC’s
• ZMX 2206 2300kv
• HQProp 5x4.6x3 Durables
• KISS Flight Controller
• FX799T 25mW Video Transmitter
• HS1177 CCD FPV camera with Sunex 2.5mm Lens
• TBS Triumph
• Revolectrix 1500mAh 4s HV Blend435

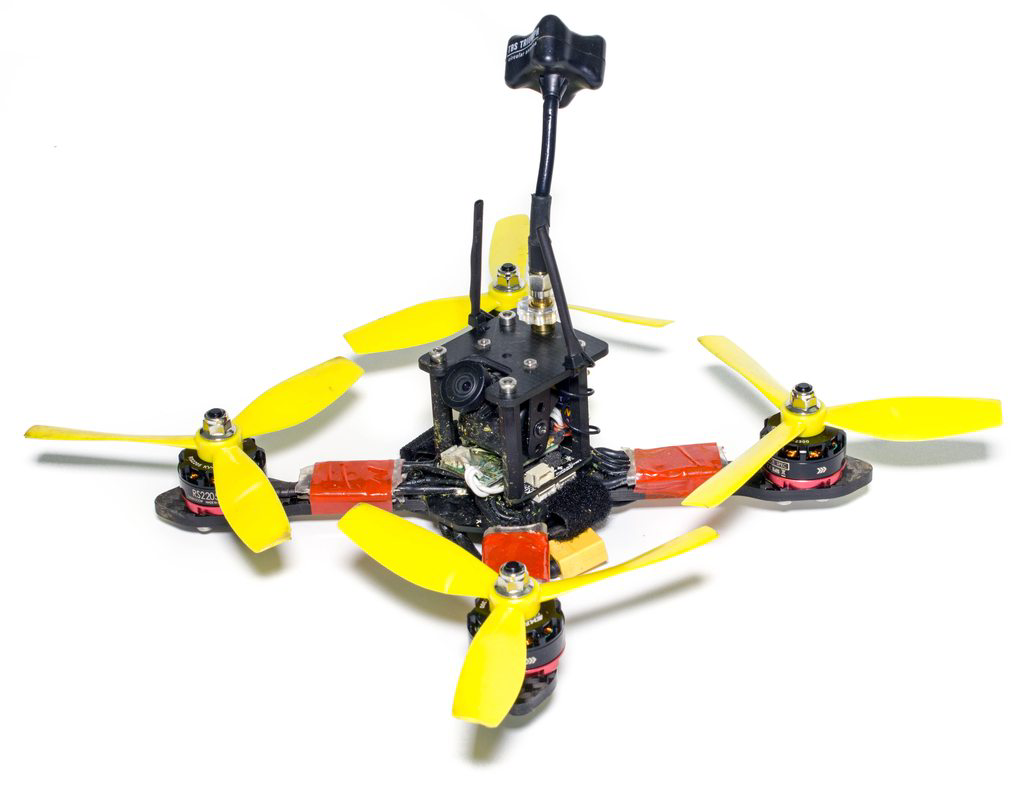

Shrike #2

Specs:

• X-Labs.us Shrike
• X4R-SB receiver
• KISS 24A-RE ESC’s
• Emax 2205 2300kv Red Bottoms
• HQProp 5x4.6x3 Durables
• KISS Flight Controller
• FX799T 25mW Video Transmitter
• HS1177 CCD FPV camera with Sunex 2.5mm Lens
• TBS Triumph
• Revolectrix 1500mAh 4s HV Blend435

Shrike #3

Specs:

• X-Labs.us Shrike
• XSR receiver
• RCX LittleBee 20A escs
• T-Motor F40 2300kv Motors
• HQProp 5x4.6x3 Durables
• KISS Flight Controller
• FX799T 25mW Video Transmitter
• HS1177 CCD FPV camera with 2.5mm Lens
• TBS Triumph
• Revolectrix 1500mAh 4s HV Blend435

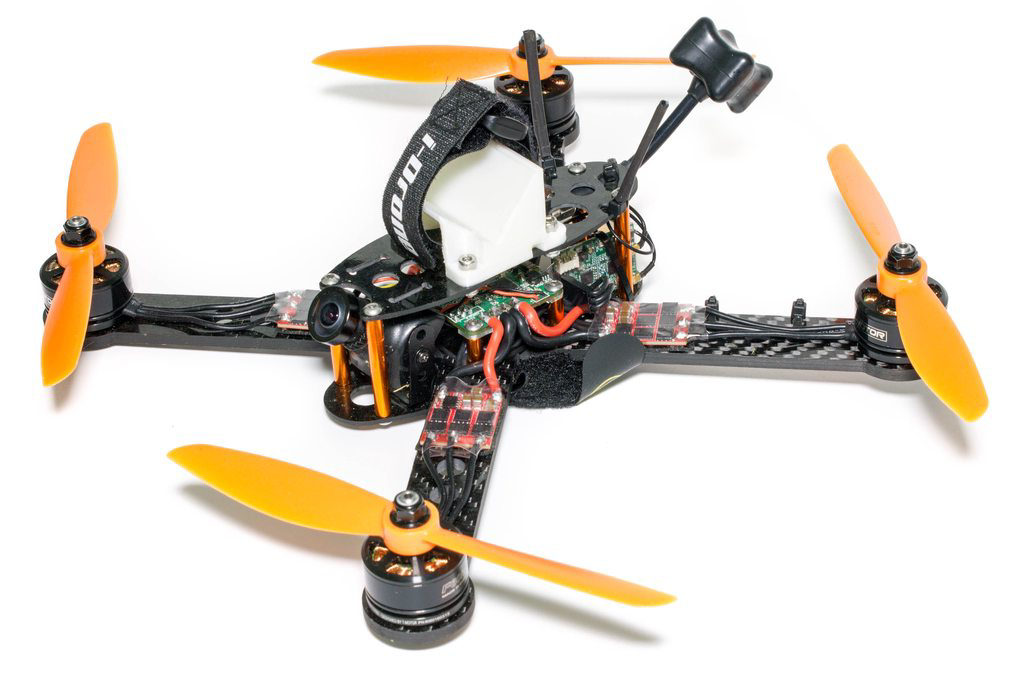

KC250

Specs:

• KC Frames KC250
• X4R-SB Receiver
• Rotorgeeks RG20 ESC’s
• T-Motor F60 2100kv Motors
• HQProp 6x4.5
• DTF DTFc Flight Controller
• FX799T 25mW Video Transmitter
• HS1177 CCD FPV camera with 2.5mm Lens
• TBS Triumph
• Revolectrix 1500mAh 4s HV Blend435

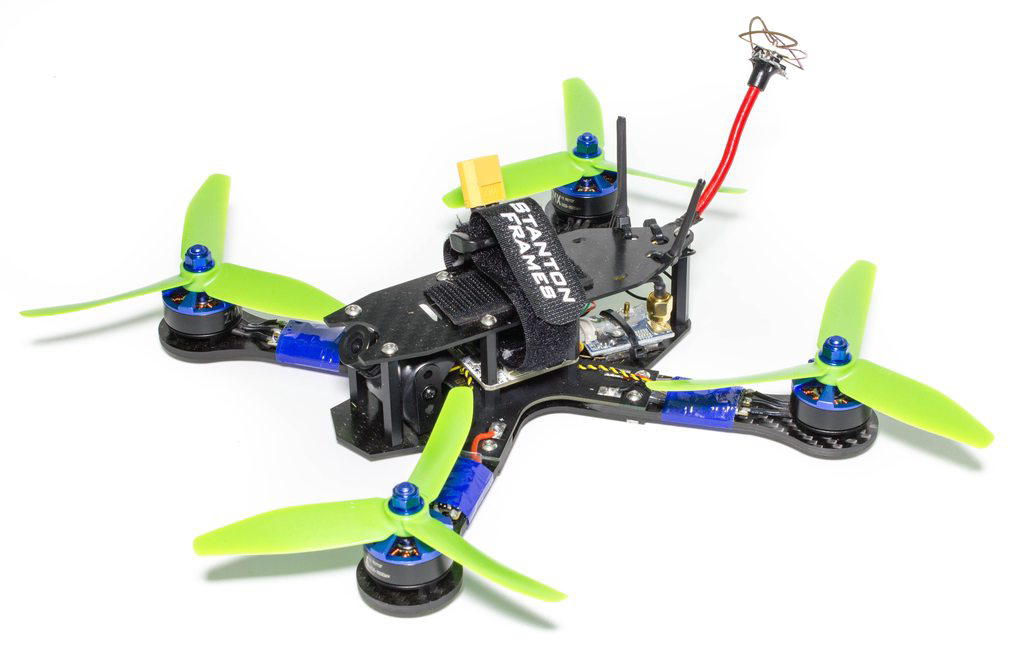

TSX220

Specs:

• Tom Stanton Frames TSX220
• X4R-SB Receiver
• DYS XM20A ESC’s
• ZMX 2206 2600kv Motors
• HQProp 5x4x3
• OpenPilot Revolution Flight Controller
• FX799T 25mW Video Transmitter
• HS1177 CCD FPV camera with 2.5mm Lens
• TBS Triumph
• Revolectrix 1500mAh 4s HV Blend435

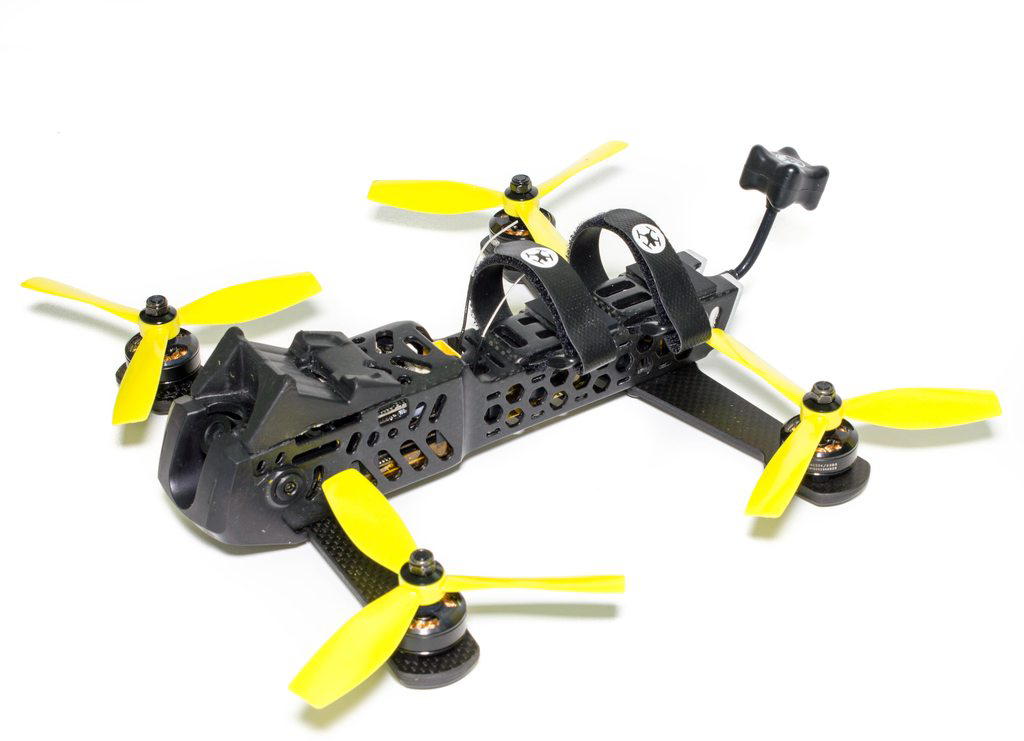

TBS Vendetta

Specs:

• TBS Vendetta
• X4R-SB Receiver
• TBS PowerCube 20A ESC’s
• Cobra 2204 2300kv Motors
• HQProp 5x4.6x3 Durables
• TBS PowerCube Colibri Flight Controller
• TBS Unify Pro 25-800mW Video Transmitter
• TBS ZeroZero with 2.5mm Lens
• TBS Triumph
• Revolectrix 1500mAh 4s HV Blend435

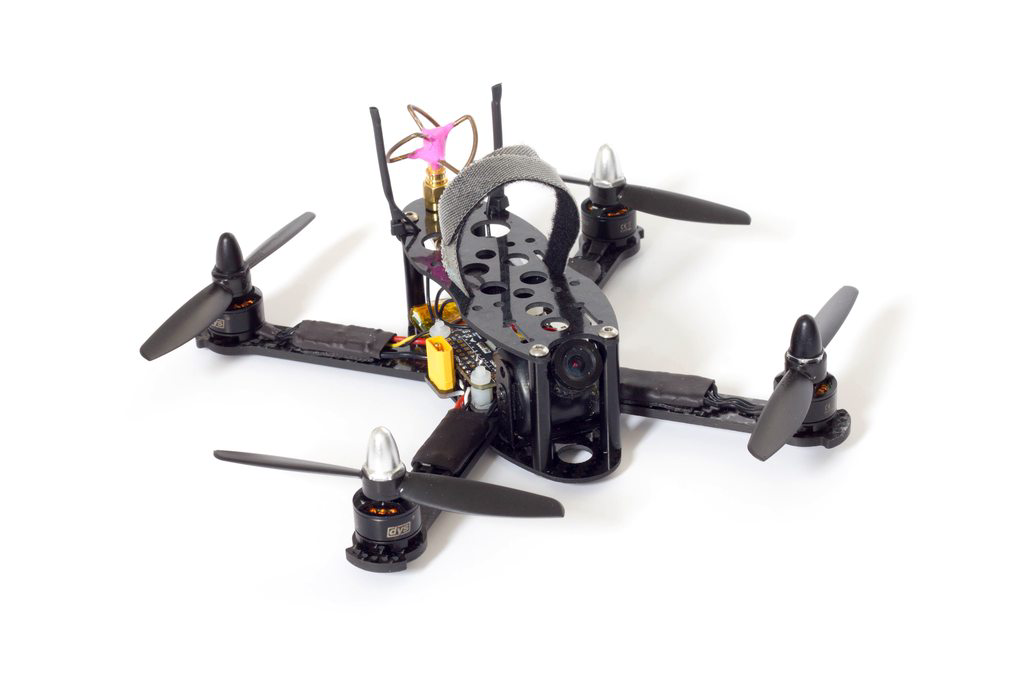

KC180

Specs:

• KC180 Frame
• D4R-II receiver
• FVT LittleBee 20A escs
• DYS 1306 3000kv motors
• HQProp 4045 props
• ReadyMadeRC Seriously DoDo flight controller
• FX799T 25mW video transmitter
• HS1177 CCD FPV Camera
• ImmersionRC Spironet Antenna
• NanoTech 850mAh 3s 45c

Build Log here.

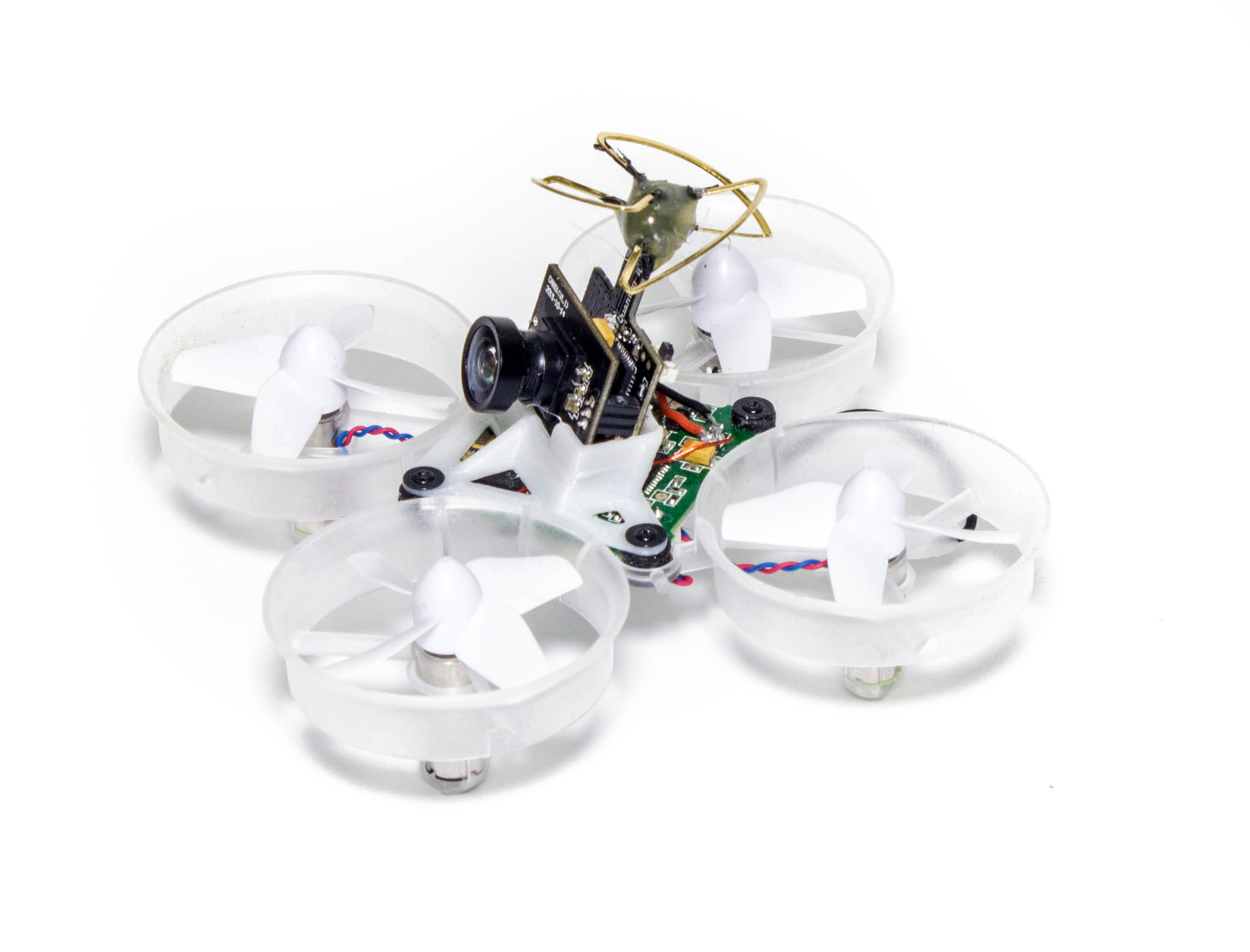

TINY WHOOP

Specs:

• Blade Inductrix BNF
• Micro-Motor-Warehouse CL-0615-14 Motors
• Quanum ELITE TX Camera Combo
• myLipo.de 205mAh
• OrangeRX DSM2 Module
